Attachment Point Weld-On Type – Grade 80 – Cartec

Attachment Point Weld-On Type, suitable for lifting and towing applications in heavy industrial environments. Made of high-strength steel, it is welded directly to the metal structure and provides a secure anchor point for hooks, chains, straps, or personal protective equipment. Complies with the requirements of Machinery Directive 2006/42/EC.

The Weld-On Point with the product code C804 is Grade 80

SAFETY INSTRUCTIONS

FORESEEN USE

Lashing ring weld-on type for load lifting

NOT SUITABLE FOR LIFTING PEOPLE

CE Conformity Declaration

(Machinery Directive 2006/42/EC annex IIB)

We declare that all the materials specified in the present declaration are in compliance with all the provisions related to Directive 2006/42/EC.

CHECK SUITABILITY OF ROTATING EYEBOLTS ART.800 BEFORE USE AND YEARLY

Before each use make sure that:

• The eyebolt shows no defects due to wear, corrosion, cracks, or visible deformations.
• Markings are clearly legible.
• The loads to be lifted are in compliance with the rated capacities of the eyebolt (the working load limits are specified on the eyebolt and in the user manual).
• The diameter of the welded ring has not been reduced by more than 10% of the nominal diameter due to wear at any contact point.
• The weld is intact and shows no wear, corrosion or cracks

If these checks give a negative outcome, the eyebolt must not be used any more, and must be replaced.

Please remember:

• Inspections must be carried out by qualified personnel.
• Checks have to be carried out by a qualified staff as the rotating eyebolts series 800 must undergo checks at regular intervals and scheduled in compliance with the laws in force

THE WELD

• The lifting clamp to be welded must be fitted by a qualified person as it is used for lifting operations which must be conducted in compliance with machinery directive 2006/42/EC and subsequent modifications
• The qualified person supervising the lifting operations must always identify the load’s centre of gravity and position the lifting clamp in such a way as to guarantee that the load is always balanced

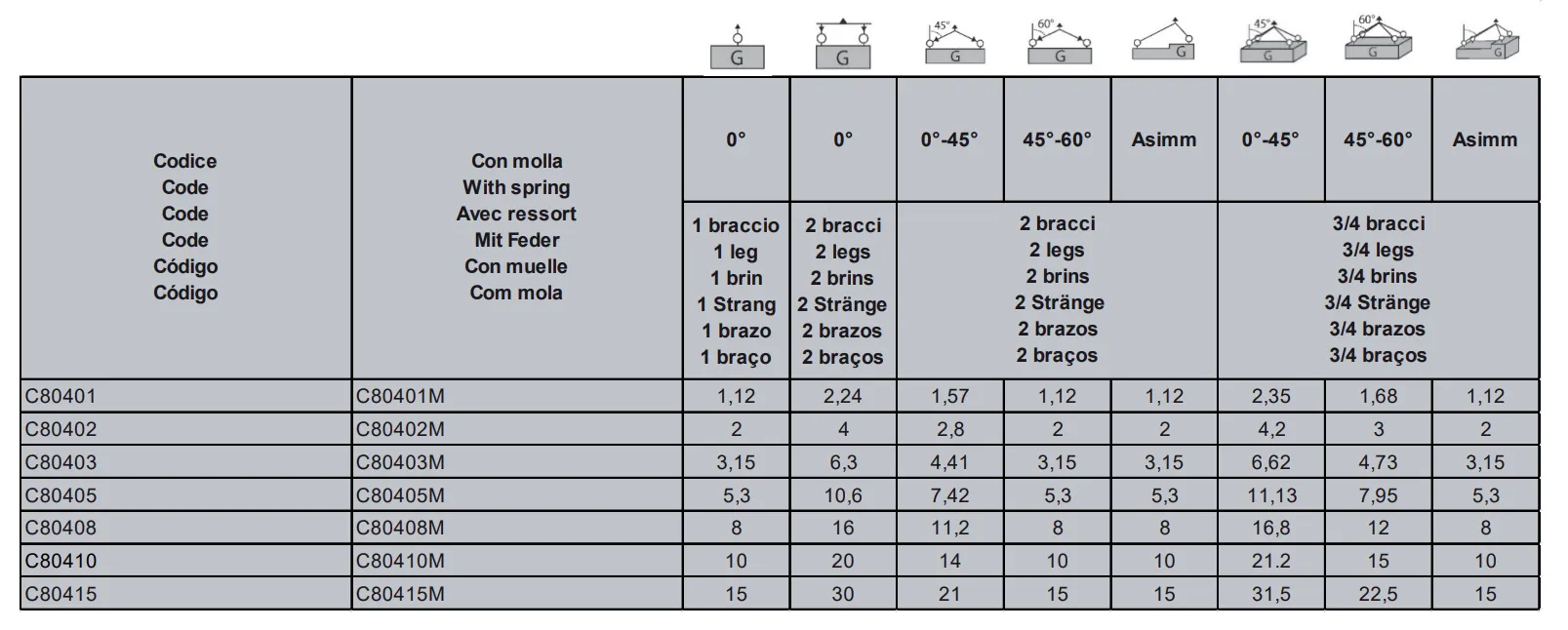

• If the load is asymmetrical take into consideration a decrease of the capacity as shown on the reference chart
• Welding must be done by a qualified person in accordance with standard EN ISO 9606
• The material of the base to be welded is 16 Mn.
• The weld bead must be sealed and performed along the entire base (do not weld red ring, as it is tempered)
• Create at least two overlapping weld beads to guarantee proper penetration
• Avoid the sudden cooling of the weld
• Position the clamp in accordance with the load to be lifted taking care to avoid unauthorised stresses such as load twisting or overturning

CAPACITY REDUCTION FACTORS

Ambient Temperature Load Limit Reduction
• <-20°C Not permitted
• -20°C to +100°C None
• 100°C to +200°C -15%
• +200°C to +250°C -20%
• +250°C to +350°C -35%
• >+350°C Not permitted

Safety Coefficient 4

THE SUPPORTING WALL

• Ensure that it is suitable for welding (ordinary steal with max carbon content of 0.40%); for safety’s sake, request approval from the manufacturer
• Ensure that there are no surface defects, cracks or roughness
• Ensure that it is suitably flat in order to guarantee a good foundation for the surface of the base to be welded
• Ensure that it is large enough to prevent deformations or stress ruptures
• For risky lifting operations safety measures have to be taken for the people who undergo the risk
• If the instructions are not adhered to serious damage can be caused to things and injuries to people
• This documentation has been prepared in compliance with section 1.7.4.2 of the Machinery Directive 2006/42/EC.

NOT ALLOWED:

• Do not use eyebolts in acid high corrosion chemical substance environment and/or in an explosive atmosphere
• Do not use in environments with temperatures above +350°C or below -20°C
• Do not exceed the capacity specified on the reference chart
• Do not used for operations which defer from the ones that are foreseen
• Do not use to life people
• Do not stop with load suspended during use
• Never weld directly the forged and tempered clamps (painted in peach) and avoid heating these clamps during welding
• Do not stand during use in dangerous areas (dangerous areas means areas which are deemed risky due to falling of load during movement with accessories)
• If changes, repairs and/or treatments are made to the product, the terms of the guarantee are no longer applicable and the manufacturer declines all liability

STORAGE:

The device must be stored in a suitable environment (e.g. dry, non-corrosive, etc.)

DISPOSAL:

The product packaging must be sent for normal recycling

The product must be recovered as metal scrap
